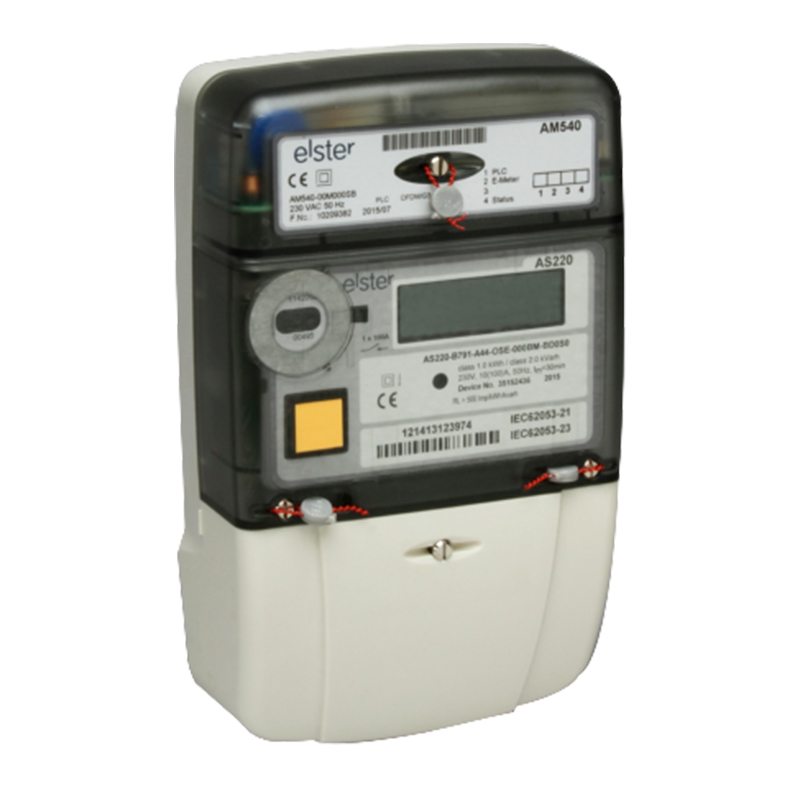

Smart electronic single-phase meter for residential & light commercial applications. Class 1, 230V. Optical port and 100A internal contractor for remote isolation and load limiting applications.

Features

• 100A Direct Connect Variant
• kWh, Kvarh, KVA four quadrant measurement.
• 4 Time of Use and 4 Maximum Demand registers
• Backlit LCD Display
• Instrumentation displays.
• Accuracy class 1.0 for 100A
• Load profile memory up to 130 days for 1 channel
• During power down clock ¬and calendar battery back-up for
• Design Life.
• Read without power.
• Internal 100A Disconnect Contractor.
• Multi drop capable (up to 32 meters on RS485 bus)
• AlphaSET Programming Software
• 1 Electronic SO output
• Power Quality Measurement
• Installation Support Features
• Supporting AMI/AMR Solutions/packages
• Terminal & Main Cover removal tamper detection
• 20-year Design Life

Communication

• GSM – GPRS Modem
• Ethernet
• Modbus Converter
• RS232 or RS485 Modules
• Optical Flag Probe
• AM540 G3 PLC communications module for use with the Beacon 3100 data concentrator
• Wireless RF Module

Technical

Download Specificaton
